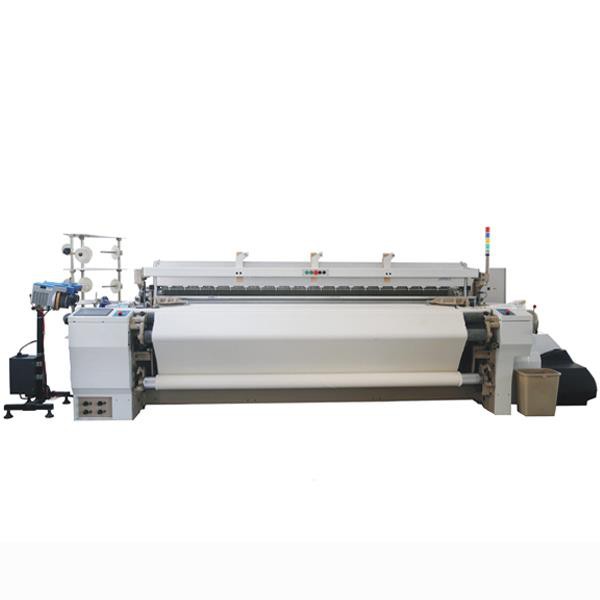

Jeans Weaving Machine

MA810 Jeans weaving machine is a newly improved model of high speed air jet loom. With the rigidity of machine frame and top beam further strengthened, the whole machine is of desired stability, beating system is better optimized, structure is further improved....

Send InquiryChat Now

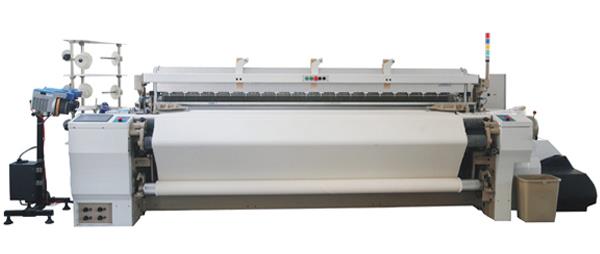

Ma810 Jeans weaving machine

MA810 Jeans weaving machine is a newly improved model of high speed air jet loom. With the rigidity of machine frame and top beam further strengthened, the whole machine is of desired stability, beating system is better optimized, structure is further improved. Beating may be done with four or six-shedding levers. With the six-shedding lever, the warp yarn has longer opening hours, as a result, it will be better for weft yarn insertion, especially suitable for wider fabric weaving, so it extends the machine weaving scope.

Optional shedding type: crank, cam, dobby and jacquard. It has the advantages of electric let-off, electric take-up, variable weft density weaving, automatic stop in case of broken yarn, double weft sensors, electronic measuring, electronic feeder and electronic control for detection of selvage yarn breakage, weft catching and side yarn, it is more convenient to operate for workers.

Optimized rear beam structure: rear beam structure has been improved with more sensitivity for varying of the warp tension. Rear tension roller bracket is installed outside of the machine frame facilitating installation and maintenance.

This MA810 Jeans weaving machine has the advantage of strong machine frame, fitting for weaving high density and super thin fabrics.With electric let-off, electric take-up, electronic detecting device, it can effectively eliminate the problem of unexpected machine stoppage, mechanical stop, product defects of broken yarn and short weft, thus enhancing the weaving quality.



Adapted varieties

High-count and high-density anti-eiderdown fabrics, high-liner fabrics, stretch fabrics, apparel fabrics, denim, and all kinds of blended interwoven fabrics.



Weft insertion system

High propulsion main nozzles and series nozzles are standard. The special high-speed IC digitally controls the opening and closing of the electromagnetic valve. The dynamic response speed of the solenoid valve is fast, the weft injection timing is precise, and the weft flight is stable, which can not only improve the quality of the fabric, but also reduce the energy consumption of the loom.



Weft feeder

Separated yarn feeders are used to actively separate the stored weft yarns. Therefore, a stable unwinding can also be achieved for a long weft yarn. Air flow threaders are also standard.



The electromagnetic valve

The imported electromagnetic valve with high-speed response performance has an extremely long service life while having both stable and reliable performance.



Shed

The shed design is reasonable, and it has good fabric quality while ensuring the beat-up performance.



Main nozzle

With a high propulsion main nozzle, the main nozzle pressure and injection time can be set separately. The tandem nozzles, as a standard configuration, can reduce the air pressure, reduce energy consumption, and reduce weft tension.



Weft detector

Using the reflective double-optical weft detecting method, in addition to detecting the short weft or bend, we can also detect the weft break or long weft. Weft detection is processed by a dedicated FPGA, which is stable and reliable, and avoids the occurrence of weft-wise weaving.



ITEM

MA810 HIGH SPEED AIR JET LOOM

Remarks

Reed width

150,170,190,210,230,260,280,320,340,360cm

Useful reed width:Reduce 0-60cm

Drive

New designed motor;Electromagnetic brake;Butt oncontrol

Bearings in gear box: SKF

Weft selection

1,2,4 or 6 colors

Feeder: Sanhe brand, Nozzle: Jiete brand

Weft insertion

The main and auxiliary nozzles are electronically controlled

Magnetic valve: SMC Japan

Beating

Solid beating shaft with multiple foot stand, Four crank shedding beating


Let-off

Eletric let off,φ800mm beam pipe

1.5pcs beam pipe,Φ800 aluminum flange,28KG

Take-up

Electric take up,Max rolling φ600mm

1.5pcs roller

Heald frame

6~16 pcs


Shedding

crank shedding/positive cam shedding/electronic dobby shedding


Air supplying

Centralized air compressor


Speed

500~1000rpm


Power

2.8kw,3.0kw,3.8kw,4.5kw

Brand: GUOFANG, QINGDAO, energy saving model

Weft density

5-60 picks/inch


Yarn account

  10-60S


Cutting

Mechanical


Selvedge

Closed selvedge with tuck-in device


Wires

 10000 pieces


Dropper

 10000 pieces


Reed

1 piece


Back rest

Double back rest,removable back rest seat


Electric control box

Touchable screen;Controlled by computer;parameter setting and controlling,autodiagnosis

Brand: Baina Nanjing

Stopping device

4 color LED lights  a、cracked ends:6 line droppers; b、 broken picks:two weft feeler c、Leno edge apparatus:near switch;d、Capture side of weft yarn:sensor


Brake

Brand: Jingyi Zhuji, Copper material, good performace and higher veracity with less stop mark.


Gears in main box

T tooth with QT700 material


Belt

Brand: Sanmen Chunguang, excellent quality, longer life


Gear shaft

45# steel with High frequency quenching process


Oil seal

CTY GERMANY


Oil nipple

Taiwan


Crossbeam

Triangular steel, weaving steadily


Lifting

Solid supporting, Thickened pipe,imported bearings


Painting

Polishing, sandblasting, baking finish


Iron castings

Weight of the whole machine iron castings are increased
