Tarpaulin Machine

Tarpaulin Machine

MW918 PP PE tarpaulin machine can weave wide-width plastic at a maximum speed of 750RPM. It is easy to operate even by an unskilled labor. It is very convenient to adjust....

Send InquiryChat Now

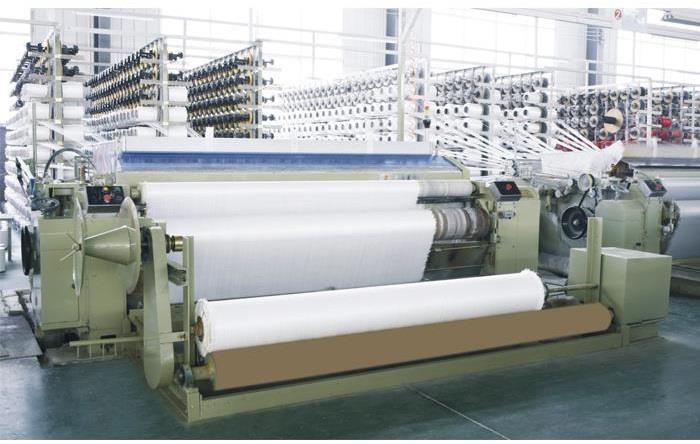

MW918P pP pe tarpaulin machine

MW918 PP PE tarpaulin machine can weave wide-width plastic at a maximum speed of 750RPM. It is easy to operate even by an unskilled labor. It is very convenient to adjust. Its design is dedicate, and woven fabrics are strong. This model can be equipped with electronic single nozzle. Its designed mainly for weaving plain and twill plastic woven fabrics, which can be widely used for making flexible container, tarpaulins, pp woven bag, geotextiles fabric etc.


Main Technical Parameters
1. Reed width:190cm,230cm,260cm,280cm,340cm(Max 5.3m width is also available, according to client’s requirement)
2. Shedding: plain/cam shedding
3. Power transmission: four crank levers
4. Let-off: directly from warp beam stands
5. Power:Main motor:1.8kw, 2.2kw
   Control motor:1.15kw
   Electric heating cutter:1.0kw
6. Take-up: tensioning automatic control motor (max rolling diameter 1.2m)
7. Weft insertion: mechanical or electronic feeder (electronic single nozzle, or electronic double nozzle)
8. Dehumidifying: squeezing and sucking
9. Yarn:500D-2000D
